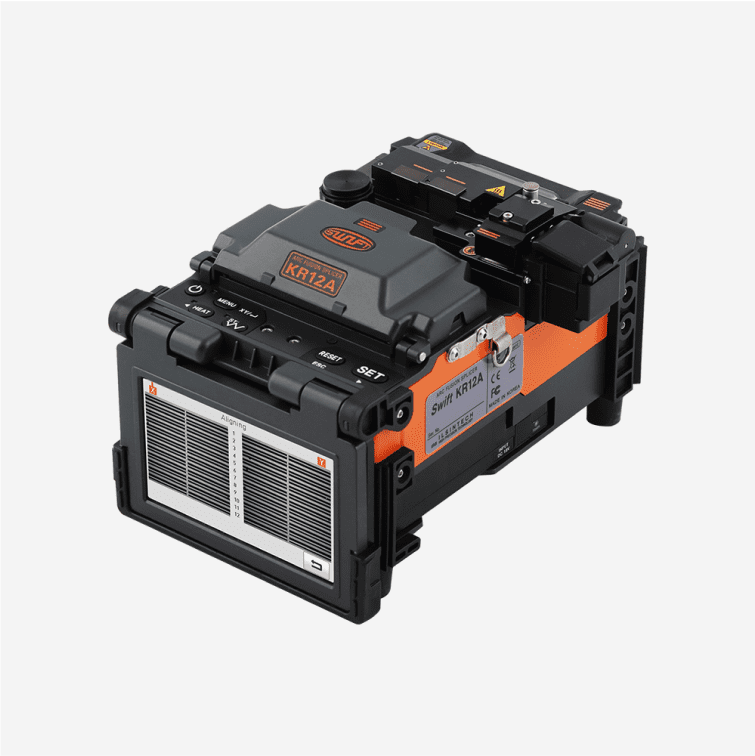

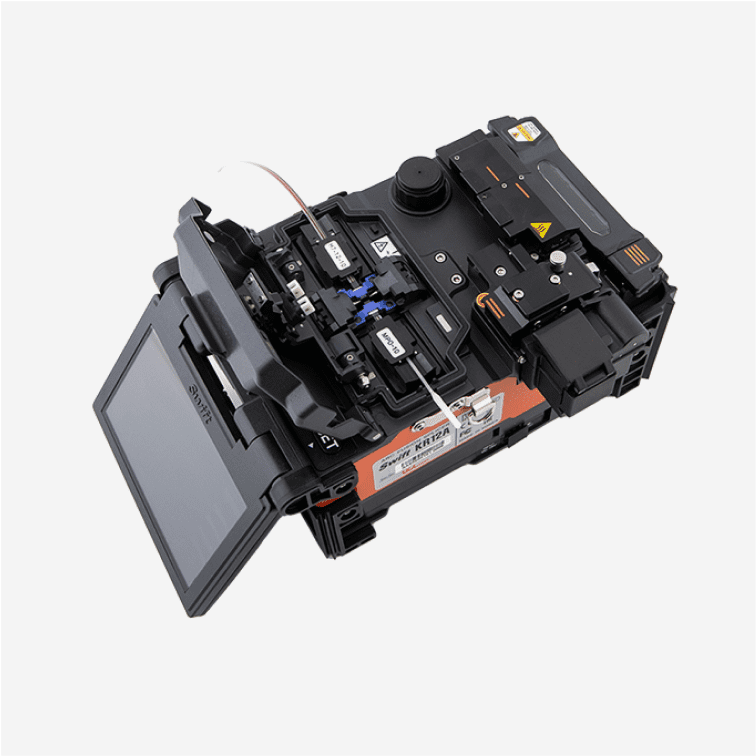

The Swift KR12A is a game changer for ribbon fibre splicing. Its simple and user-friendly design enables users to splice quickly and conveniently. Offering a unique All in one platform for stripping, cleaning, cleaving, splicing & sleeving the KR12A is fast and efficient. Additionally, the Swift KR12A’s thermal automatic stripper does not scratch or weaken the fibre.
Ribbon splicing can be a complicated process when you have a separate splicer, stripping tool, cleaving tool and IPA dispenser. There is the risk of dropping the cleaver or the stripper losing valuable time while you get a replacement. This is why the All-In-One solution in one stable platform makes the KR12A the best splicer for ribbon fibre.
BENEFITS AND FEATURES
- The All-In-One system provides exceptional workability, integrating 5 functions in one unit (stripping, cleaning, cleaving, splicing and protecting)
- Built in Autostripper reduces the splice cycle time and the number of tools to carry
- No scratches from heated stripping increases splice strength dramatically. Over 2kg/f Tensile Strength of fibre after stripping. Click Here to find out how to make splices that won’t fail
- Over one million life cycles of the motor
- Blade life of 3,650 cleaves
- Internet remote access maintenance
- 5-inch Colour LCD Monitor with electrostatic touch screen & bidirectional operating system
- Powerful lithium polymer battery with large capacity: 6000mAh
- User-friendly and ergonomically designed with a navigational touch screen and button operation too
- Resistance to shock, dust and water
View the KR12A Data Sheet Here

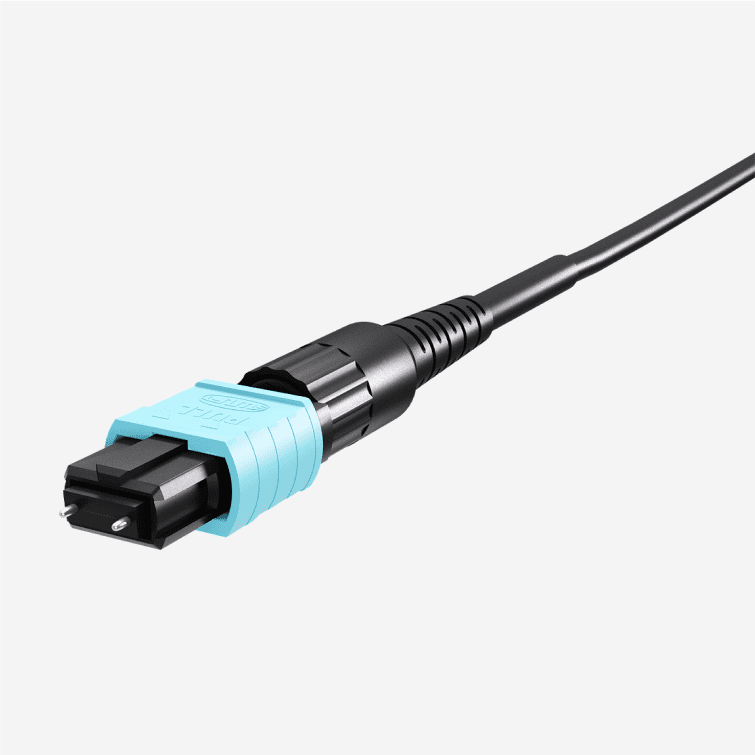

MPO Fusion Splice On Connector – terminate it with the KR12A
UCL’s MPO FSOC(Fusion Splice-On Connector) type with soft boot is field installable and provides easy, reliable, permanent field terminations and complies with international standards. It is terminated on a 3.0mm or Ribbon cable with UCL’s All-In-One Fusion Splicer, KR12A.
Features and Benefits
- Facilitate rapid deployment of high-density cabling in data center
- Premium grade MT-ferrule
- No excess slack, Cost saving
Specifications
- Insertion Loss (Max): 0.35dB(SM), 0.25dB(MM)
- Return Loss (min):60dB(SM, APC), 20dB(MM, UPC)
- Reliability Standard: TIA-568-C.3
