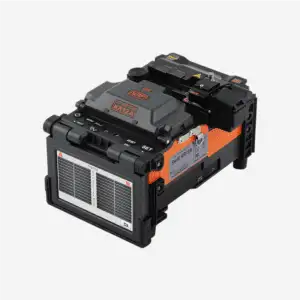

Swift K33A All in One Core Alignment Fusion Splicer


Quick Overview

The Swift K33A’s simple and user-friendly design enables users to splice quickly and conveniently throughout the 5 processes; stripping, cleaning, cleaving, splicing & sleeving. (ALLINONE) One more thing, Swift K33A’s thermal automatic stripper leaves no scratches while a manual stripper scratches on fiber very much.


Categories : Fusion Splicer

The Swift K33A All in One Core Alignment Splicer allows you to splice fibres, splice on connectors and fibre cables together – with it you can make your own pigtails, hybrid cables on the spot or make in line repairs to existing cables. This is more than just a splicer.


  • K33A with All-In-One system provides the ultimate splicing solution
  • Ideal for Installation and Production
  • Integrated 5 functions in one unit (Stripping, cleaving, cleaning, splicing and splice protection)
  • Automatic Thermal Stripper – No scratches on, tensile strength – Telcordia standard 1.7kgf or more
  • Providing remote maintenance service via Internet
  • Resistance to Shock, Dust and Water
  • Dimensions: 142 (W) x 219 (L) x 137 (H)
  • Weight: 2.45 kg (including battery)
  • Electrode life: up to 18,000 splices
  • Blade life: Up to 75,000 fibres, optional 110,000 fibres
  • Fibre alignment: IPAAS Core Alignment
  • Fibre cleave length: 250um: 5 ~ 16 mm, 900um: 8 ~ 16 mm
  • Typical splice loss: SM: 0.02 dB, MM:0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
  • Splicing time: Typical 9 seconds
  • Sleeve heating time: 9 sec (IS-45 mode), 13 sec (IS-60 mode)
  • Tension test: 2N / 4.4N (optional)
  • of splice cycles with battery: Typical 200 cycles (4,700mAh)


Advantages of an Automatic Thermal Stripper



  1. Stripping
  • No scratches from heated stripping.
  • 1 second strip time.
  • Over 5 kgf tensile strength of fibre after stripping.
  • Featuring excellent tensile force of fibre, the automatic stripper strips up to 28mm in length without damaging the surface of fibre.
  • Minimum stripping length should be longer than 18mm.
  1. Cleaning
  • One-touch pump.
  • The alcohol pump can be removed and refilled with cleaning fluid.
  • Avoid splashing the alcohol please cover the top part of dispenser with cleaning cotton and push it.
  1. Cleaving
  • Single-action cleaving.
  • 75,000 fibres cleaving with automatic rotating blade.
  • Designed to cleave the fibre at a 90 degree angle.
  • The fibre shards are collected in the slide-type chip box placed at the side of body.
  1. Splicing
  • Splicing available from 1 core to 12 cores.
  • After splicing the fibre splice must be visually perfect.
  • Electrode life up to 18,000 splices.
  1. Splice protection
  • Shrink down takes 20-35 seconds.
  • Equipped with a sleeve loader to prevent contamination and provide convenience.
  • Increased productivity from built-in sleeving unit.


  • Arc fusion splicer: SWIFT K33A
  • User guide
  • Cooling tray
  • Hard Transporting case
  • Battery: 6,000 mAh
  • AC Adapter
  • Sleeve Loader
