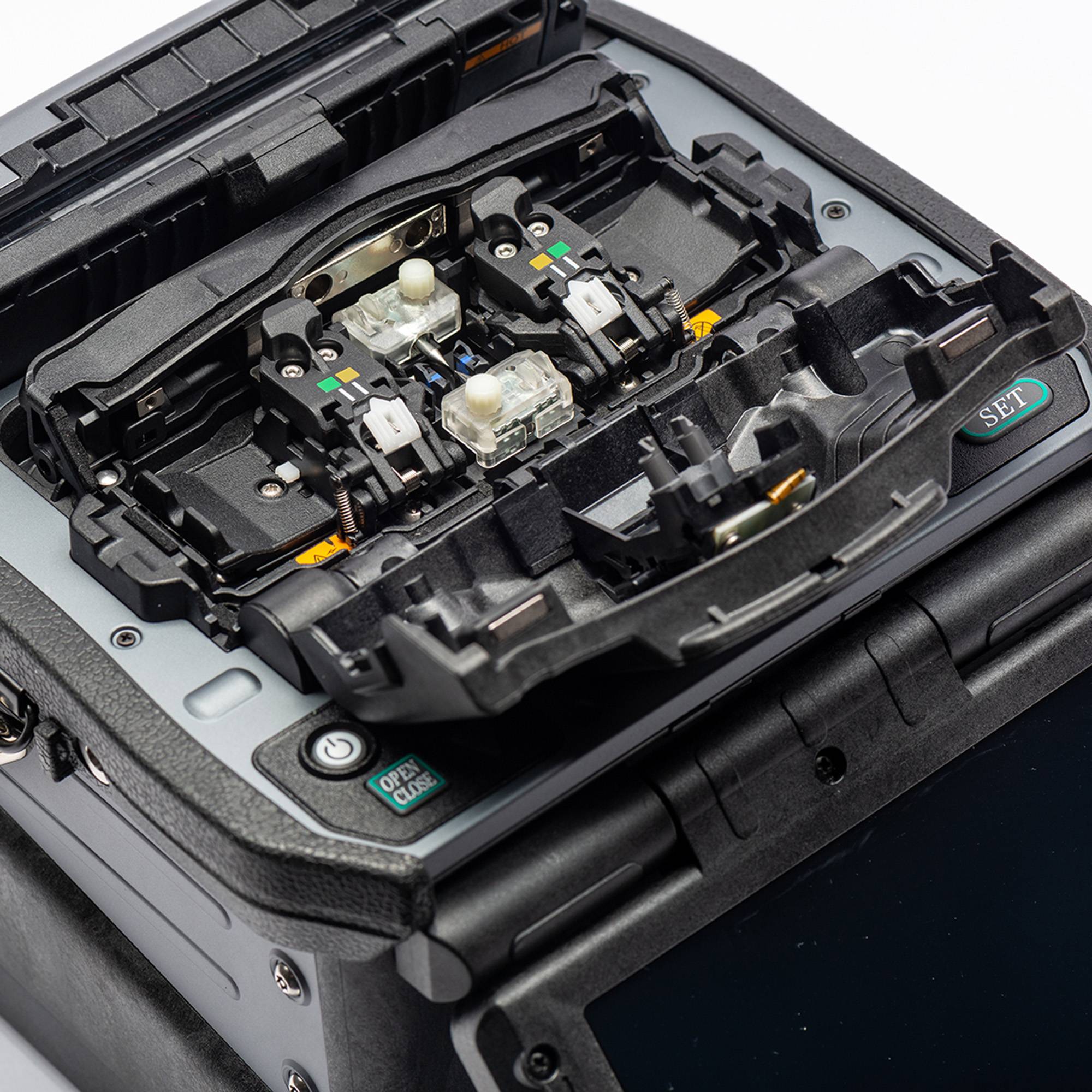

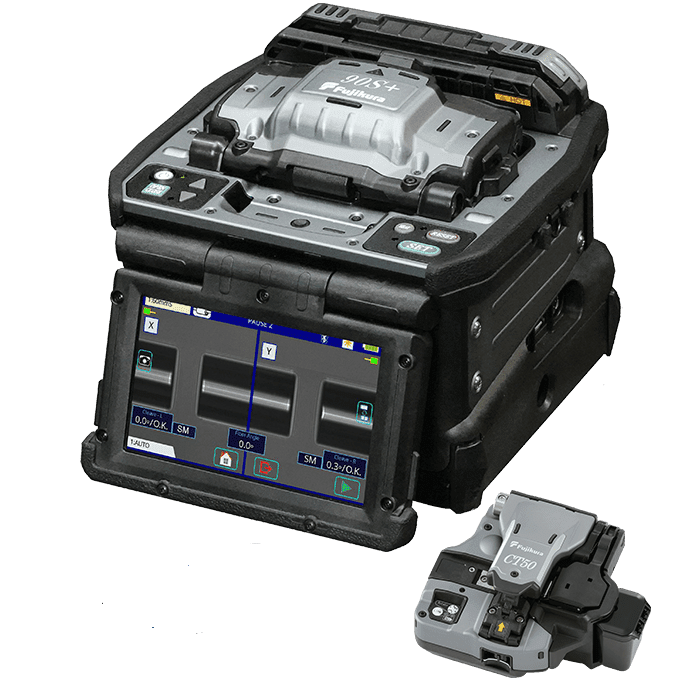

The 90S Plus is a fusion splicer that sets a new standard with its advanced features aimed at speeding up your work and improving splice quality. The overall splice time is significantly reduced due to faster automated wind protectors and a cutting edge splice protection heater, new fibre retention clamps, better universal sheath clamps, and an internal structure aligning the protection sleeve to the splice point.
Features
- High precision and accurate core alignment technology with advanced image processing.
- Automatic wind protector design that reduces overall splice time but can also be used manually.
- Patented splice protector positioning system.
- Fibre retention clamps.
- Universal sheath clamps for standard 250 um fibre as well as 900 um loose tube fibre types.
- Redesigned multi-function carry case and workstation.
- Enabled with Fujikura’s “Active Blade Management Technology” with the capability to link up to two CT50 cleavers simultaneously.
- Tool-less replaceable electrodes.
- High capacity lithium-ion battery (up to 300 splices).
- Touch screen for ease and speed.
- A wide variety of splice settings allows you to splice any type of fibre.
